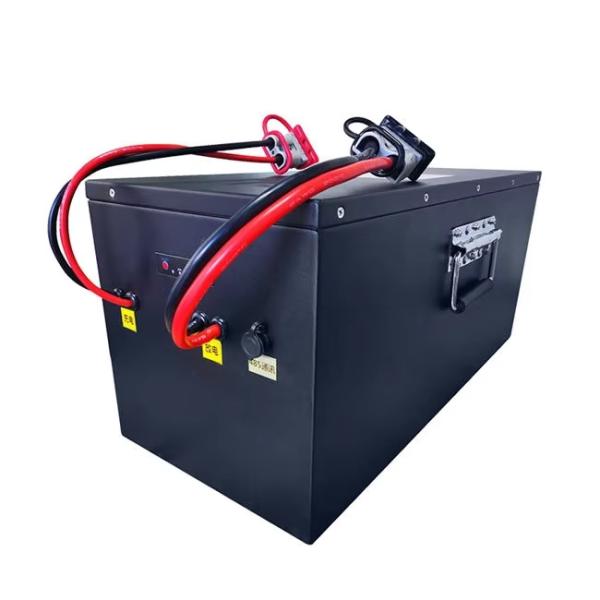

48V 150Ah LiFePO4 Lithium Vehicle Battery with Smart BMS and Custom Shape
Introducing our 48V 150Ah lithium vehicle battery, featuring advanced LiFePO4 technology, a smart battery management system (BMS), and customizable shape options.
Key Features:
High Capacity: With 150Ah, this battery provides robust power for a variety of electric vehicles.
LiFePO4 Technology: Ensures safety, thermal stability, and a longer lifespan compared to traditional battery types.
Smart BMS: Integrated smart battery management system for real-time monitoring, protection against overcharging, and enhanced performance.
Customizable Shape: Designed to fit your specific vehicle requirements, ensuring optimal space utilization and easy installation.
Low Maintenance: Maintenance-free design allows for hassle-free operation over time.
Versatile Applications: Suitable for electric cars, e-bikes, golf carts, and more.
This 48V 150Ah LiFePO4 battery is the ideal choice for those seeking a reliable, efficient, and tailored energy solution for their vehicles.
Specification
| Items | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 150Ah |
| Energy | 7680Wh |
| Internal Resistance | ≤15mΩ |
| Series & Parallel Application | up to 16 parallel connection |
| Limited Charge Voltage | 58.4V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 40V |
| Charge Current | 150A (Customizable) |
| Continuous Discharge Current | 150A (Customizable) |
| Pulse Discharge Current | 300A (Peak) |
| Cycle Life | > 8000 cycles |
| Dimension (mm) | Customized |
| Weight | 60Kg |
| Communication | RS485/CanBus/Modbus/BT |
| Charge Temperature Range | 0~55℃ |
| Discharge Temperature Range | -20~65℃ |
| Recommended Operating Temperature | 15~55℃ |
| Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
| No. | Item | Test Item | Criterion |
| 1 | Voltage | Charging Voltage | DC:58.4V CC/CV |
| Balance voltage for single cell | 3.50±0.025V |
| 2 | Current | Balance voltage for single cell | 35±5mA |
| Current consumption | ≤50μA |
| Charging current | 100A |
| Rated continuous discharging current | 100A (Peak 200A) |
| 3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V |
| Over charge detection delay time | 0.7S—1.3S |
| Over charge release voltage for single cell | 3.550±0.05V |
| 4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V |
| Over discharge detection delay time | 1.6±0.5S |
| Over discharge release voltage for single cell | 3.00±0.75V |
| 5 | Over current Protection | Over current detection current | 500±50A |
| Over current detection delay time | 1.6±0.5S |
| Release condition | Cut load |
| 6 | Short Protection | Detection condition | Exterior short circuit |
| Detection delay time | 230uS—500uS |
| Release condition | Cut load |
| 7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ |
| 8 | Temperature | Operating Temperature Range | -40~+85℃ |
| Storage Temperature Range | -40~+85℃ |
Packing and Shipping:
The AGV batteries come in a sturdy cardboard box with foam inserts to ensure safe transport and storage. The box is labeled with the product name, specifications, and handling instructions for the convenience of the user.
Shipping:
Our AGV batteries are shipped via reliable courier services to ensure timely delivery and safe handling. The batteries are securely packed in a protective box and labeled with all necessary shipping information. We offer free shipping within the United States and international shipping at an additional cost.
FAQ:
Q1: What is the brand name of AGV Batteries?
A1: The brand name of AGV Batteries is OEM & ODM.
Q2: Where is the place of origin of AGV Batteries?
A2: AGV Batteries are manufactured in China.
Q3: What certifications do AGV Batteries have?
A3: AGV Batteries have CE, UN38.3, and MSDS certifications.
Q4: What is the minimum order quantity for AGV Batteries?
A4: The minimum order quantity for AGV Batteries is 50.
Q5: What are the payment terms for AGV Batteries?
A5: The payment terms for AGV Batteries are L/C and T/T.
Q6: What is the supply ability for AGV Batteries?
A6: The supply ability for AGV Batteries is 10000per.
Q7: What is the delivery time for AGV Batteries?
A7: The delivery time for samples is 8 days, and for bulk orders, it is 30 days.
Q8: What are the packaging details for AGV Batteries?
A8: According to standard export packing, AGV Batteries are packaged in carton boxes, wooden boxes, or wooden pallets.
